Автомашины түлшний насосны коммутатор 20.5x5x6.6 автомашинд зориулагдсан
Энэхүү коммутатор нь орон сууц, коммутаторын сегмент, металл бут, тусгаарлагч хуудас зэрэг автомашины түлшний насосны моторуудад тохиромжтой.
Шатахууны насосны эвдрэлийн гол асуудал бол коммутатор юм. Ихэнх түлшний шахуургууд нойтон ажилладаг тул бензин нь арматурын хөргөлтийн бодис, сойз, коммутаторын тосолгооны материал болдог. Гэхдээ бензин үргэлж цэвэр байдаггүй. Бензин болон түлшний саванд байгаа нарийн ширхэгтэй шороо, хог хаягдлыг савны шүүлтүүрээр авах боломжтой. Энэхүү нунтаг нь сойз болон коммутаторын гадаргууг сүйтгэж, элэгдлийг хурдасгадаг.
Түлшний насосны коммутаторын параметр
Бүтээгдэхүүний нэр: | Автомашины түлшний насосны моторын коммутатор |
Хэмжээ | 20.5x5x6.6 эсвэл тохируулсан |
Материал | 0.03% Мөнгө/ Зэс/ бакелит эсвэл захиалгаар |
Бүтэц: | Хавтгай төрлийн дэгээтэй коммутатор |
Хэрэглээ: | Автомашины цахилгаан түлшний насос моторын сэлбэг |
Хүчдэл: | 12V 24V 48V 60V |
Хүргэлт: | 7-60 ажлын өдөр |
Савлах: | Хуванцар хайрцаг / хайрцаг / тавиур / захиалгаар хийсэн |
Тээвэрлэлт: | Далайн/агаар/галт тэргээр |
Үйлдвэрлэлийн хүчин чадал: | Сард 1,000,000 ширхэг |
Түлшний насосны коммутаторын дэлгэрэнгүй
The cross section of the commutator piece is a fan ring shape, and the cross section of the insulation piece is a fan ring shape and the central angle is smaller than the commutator piece. The commutating piece and the insulating piece are sequentially arranged in a hollow cylinder, and the outer shell is sleeved on the outer end of the commutating piece and the insulating piece. The metal bushing is a hollow cylinder, and the outer surface of the metal bushing abuts on the inner surface of the hollow cylinder composed of the commutator sheet and the insulating sheet. The bottom end of the commutator piece is connected with a contact piece, and the other end of the contact piece can be connected to the brush. An elastic metal sheet is arranged between the commutating piece and the contact piece of the commutator to make the contact piece and the brush elastically contact and reduce the wear of the contact piece. The outer circumference of the commutator segment is provided with a reinforcing ring, which can increase the overall strength of the commutator. The metal bushing is made of stainless steel, which can protect the shell and avoid mechanical stress on the shell when the commutator is pressed onto the shaft.

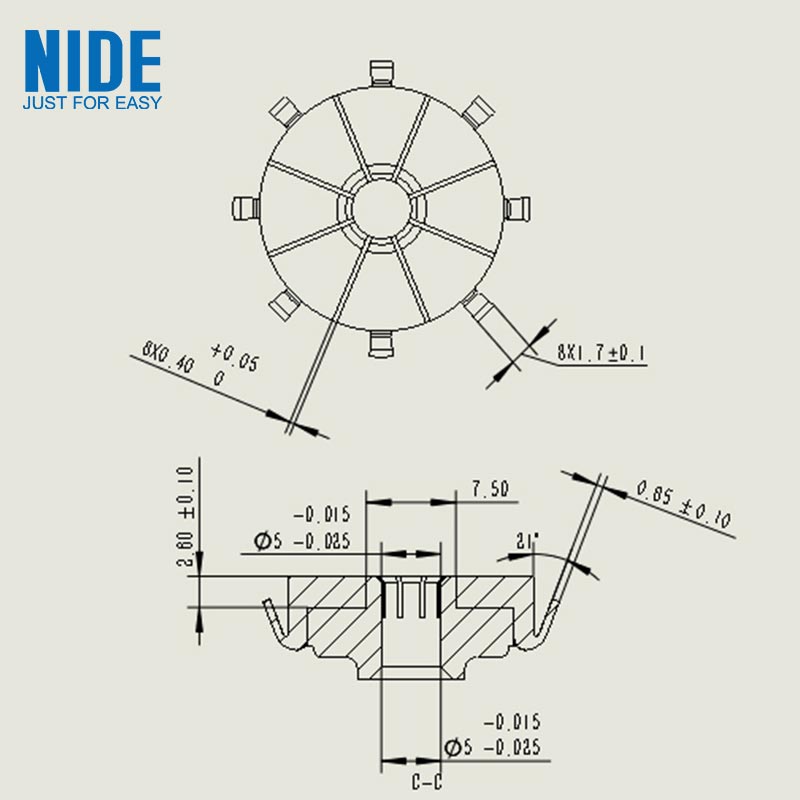

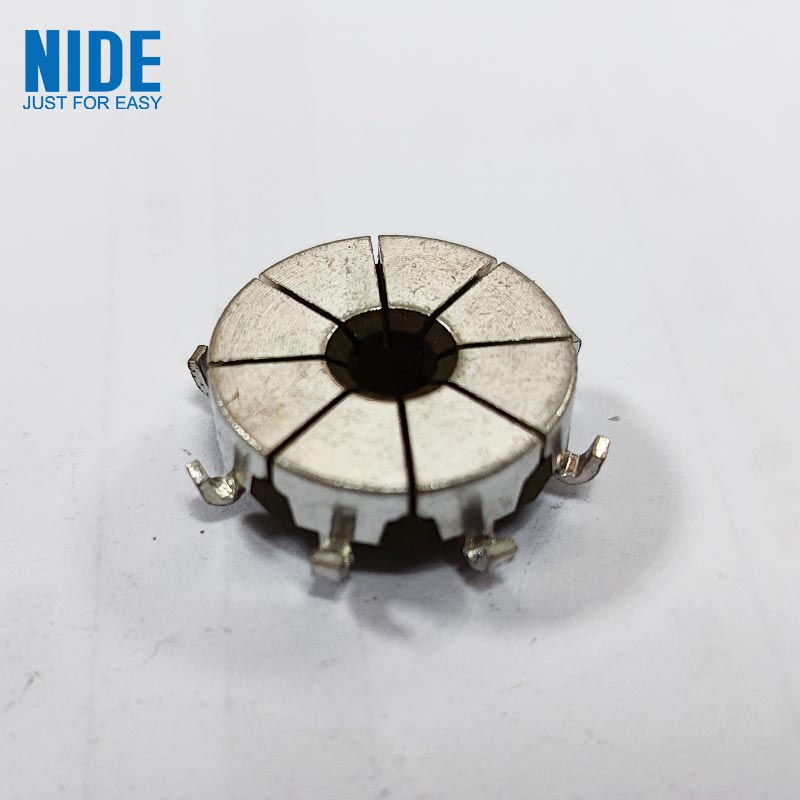

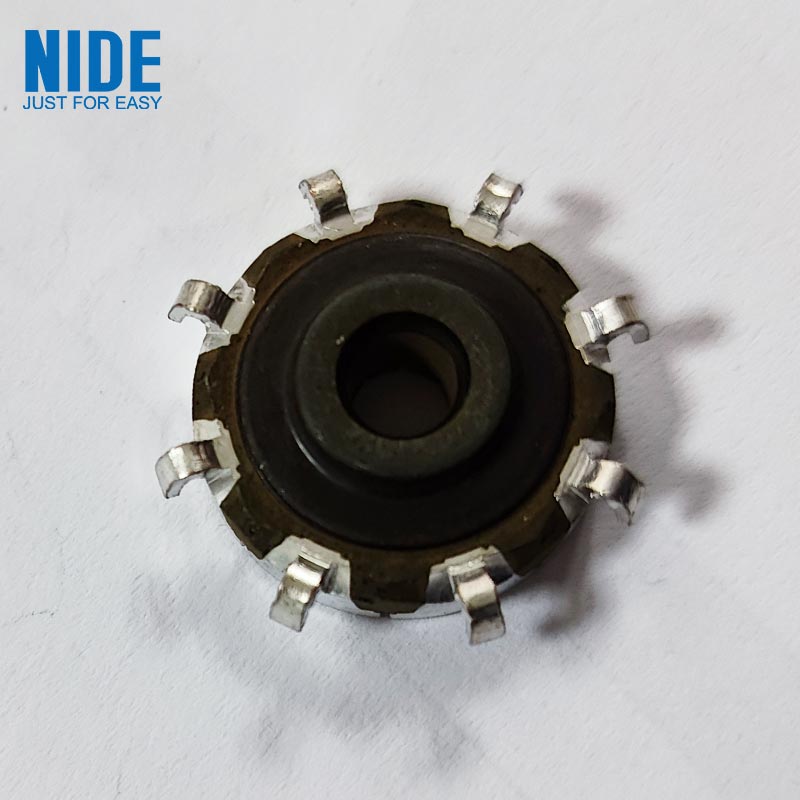

Түлшний насосны коммутаторын зураг
